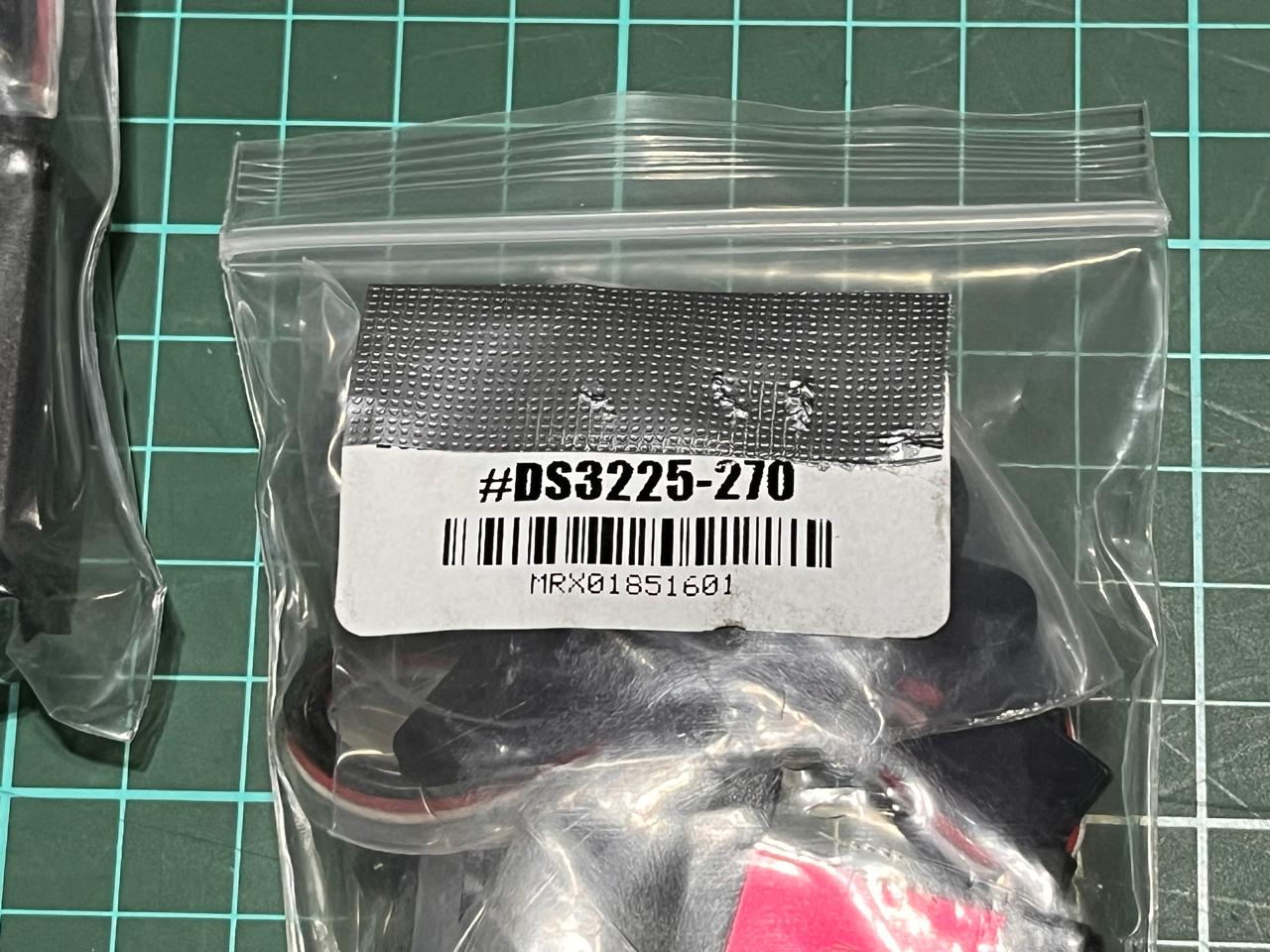

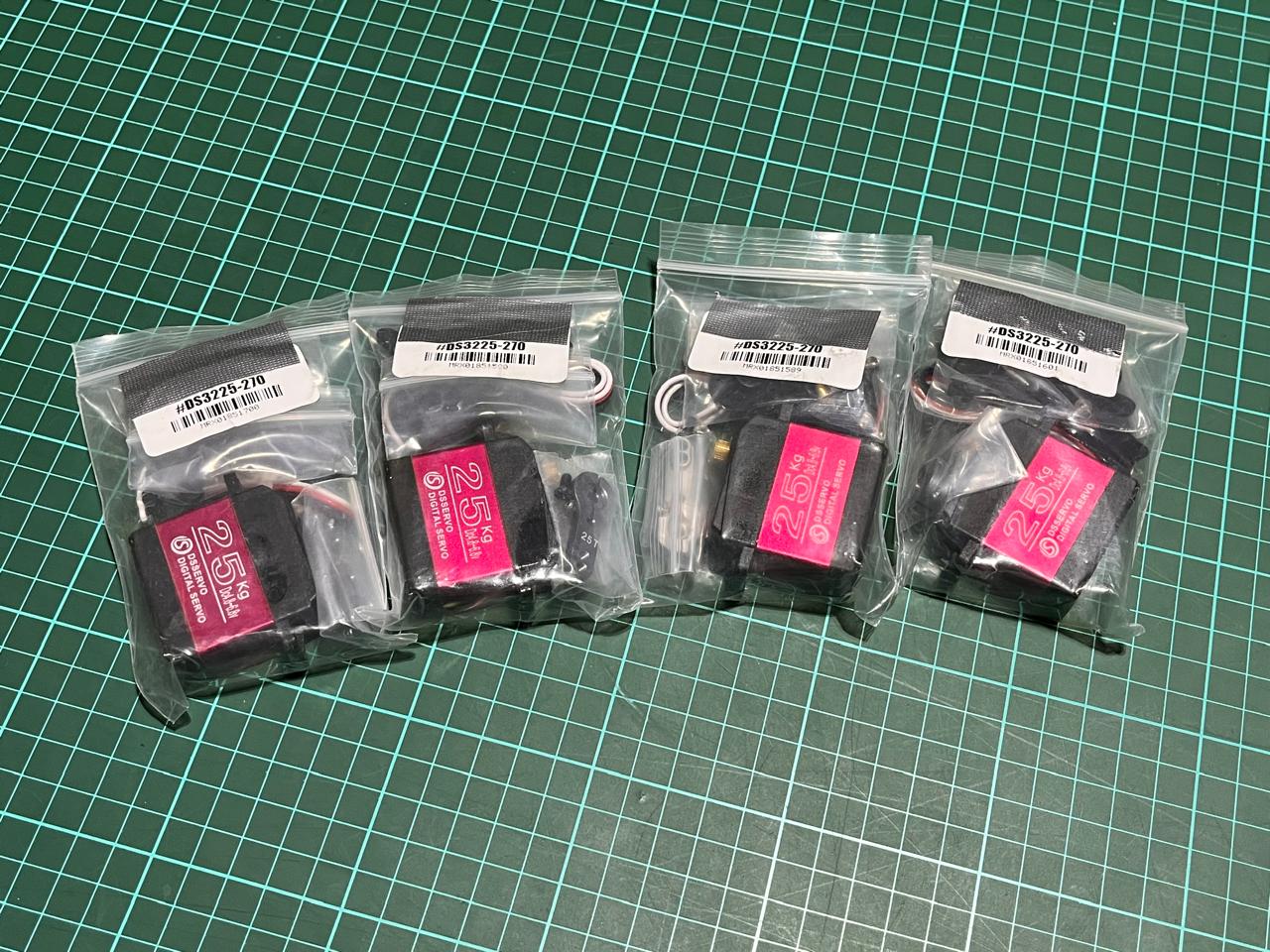

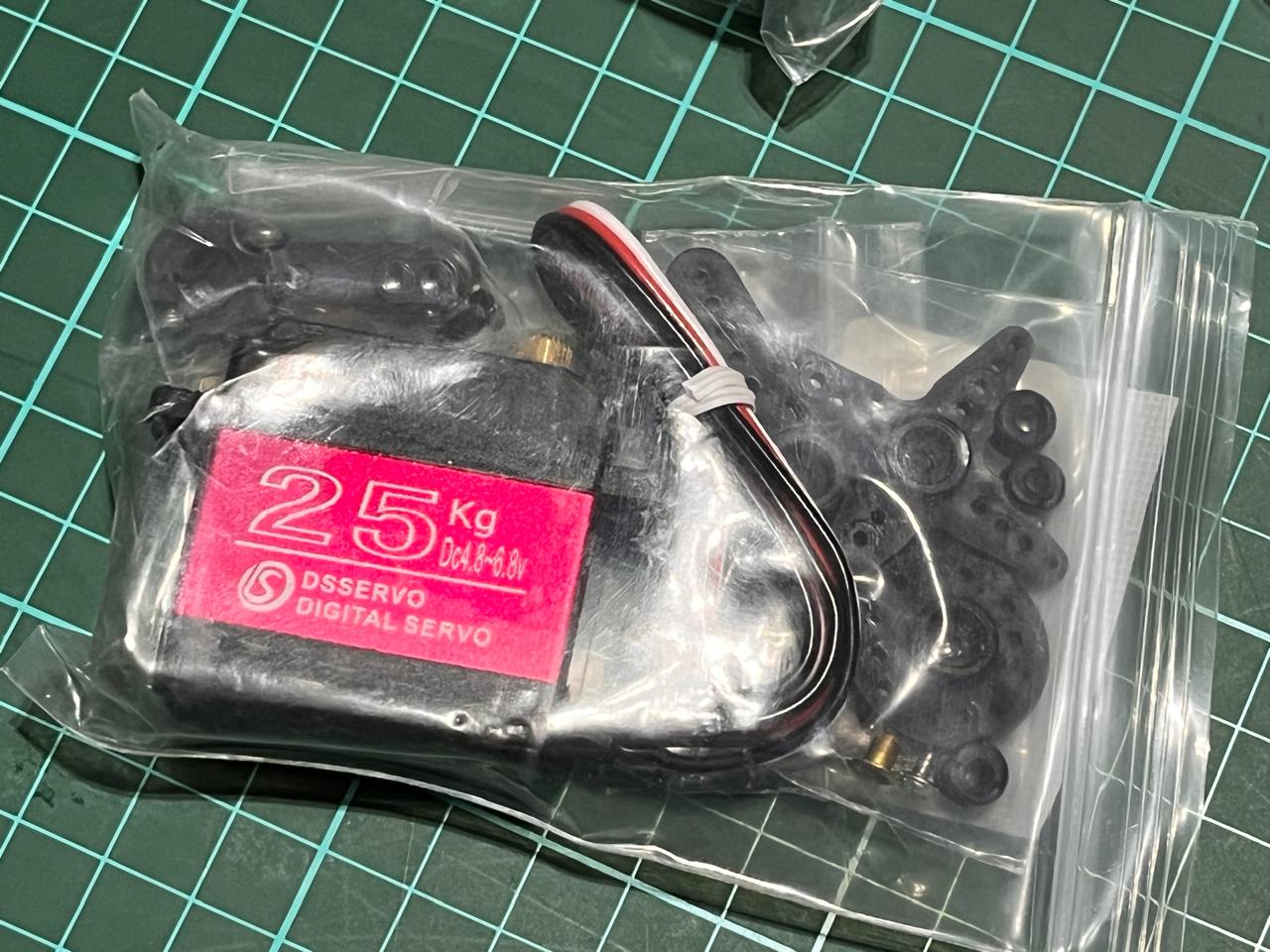

DS3225-270 25kg Digital Servo. (CODE 703) x4 In Stock

R245,00

Category

    A wide 270-degree operating angle, dual ball bearings, a CNC aluminum middle shell for efficient heat dissipation, and a rugged full-metal gear train.

    Technical Specifications

    • Stall Torque: 21.0 kg-cm at 5.0V | 25.0 kg-cm at 6.8V
    • Operating Speed: 0.15 sec/60° at 5.0V | 0.13 sec/60° at 6.8V
    • Operating Voltage: 4.8V to 6.8V DC
    • Operating Angle: 270° (via standard 500 to 2500 μsec PWM signal)
    • Horn Spline Type: 25-Tooth (25T)
    • Dead Band Width: 3 μsec
    • Waterproof Rating: IP66 (splashproof/drip-proof, not submersible)
    • Dimensions: 40mm x 20mm x 40.5mm
    • Weight: ~60 grams
