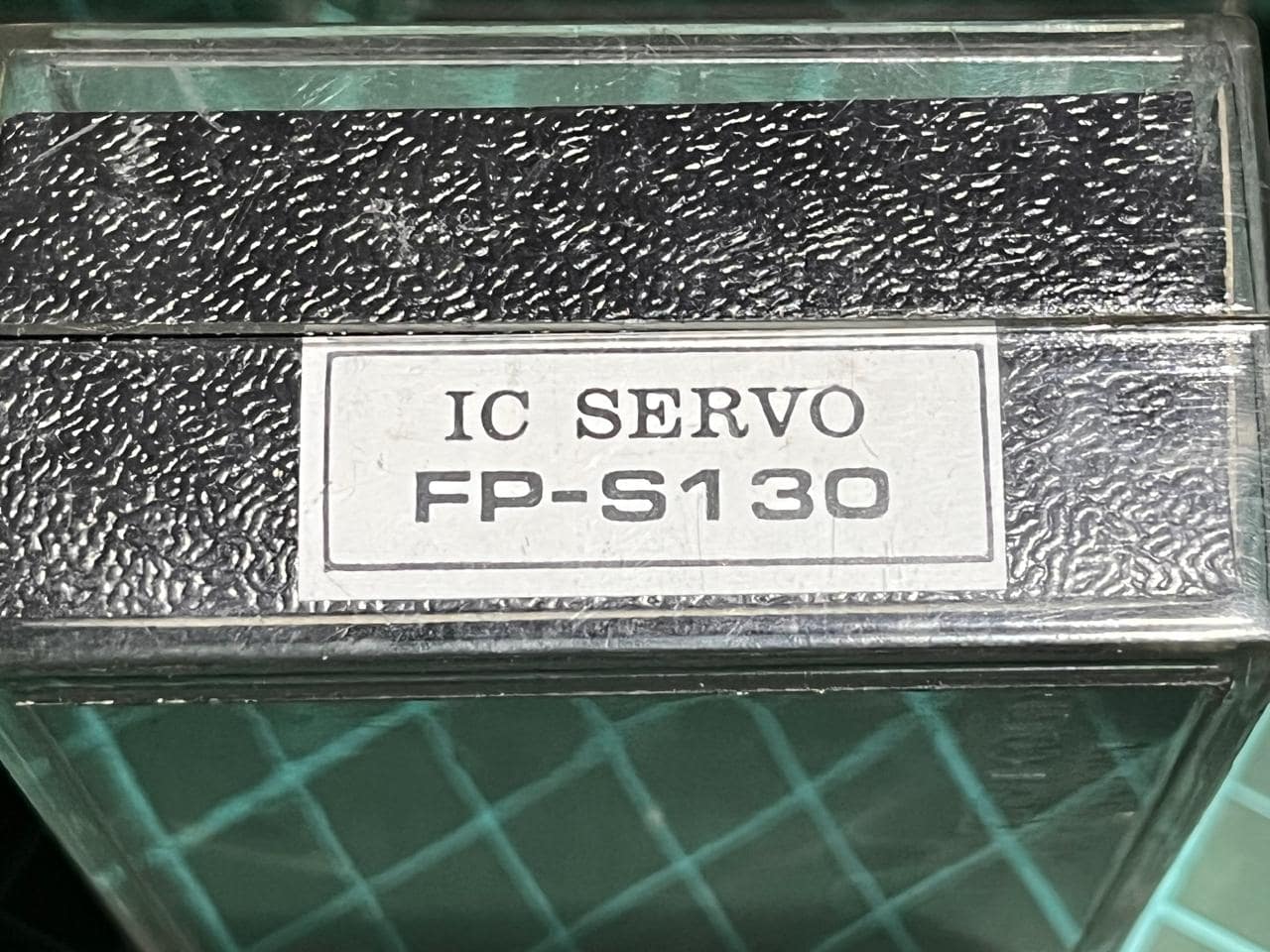

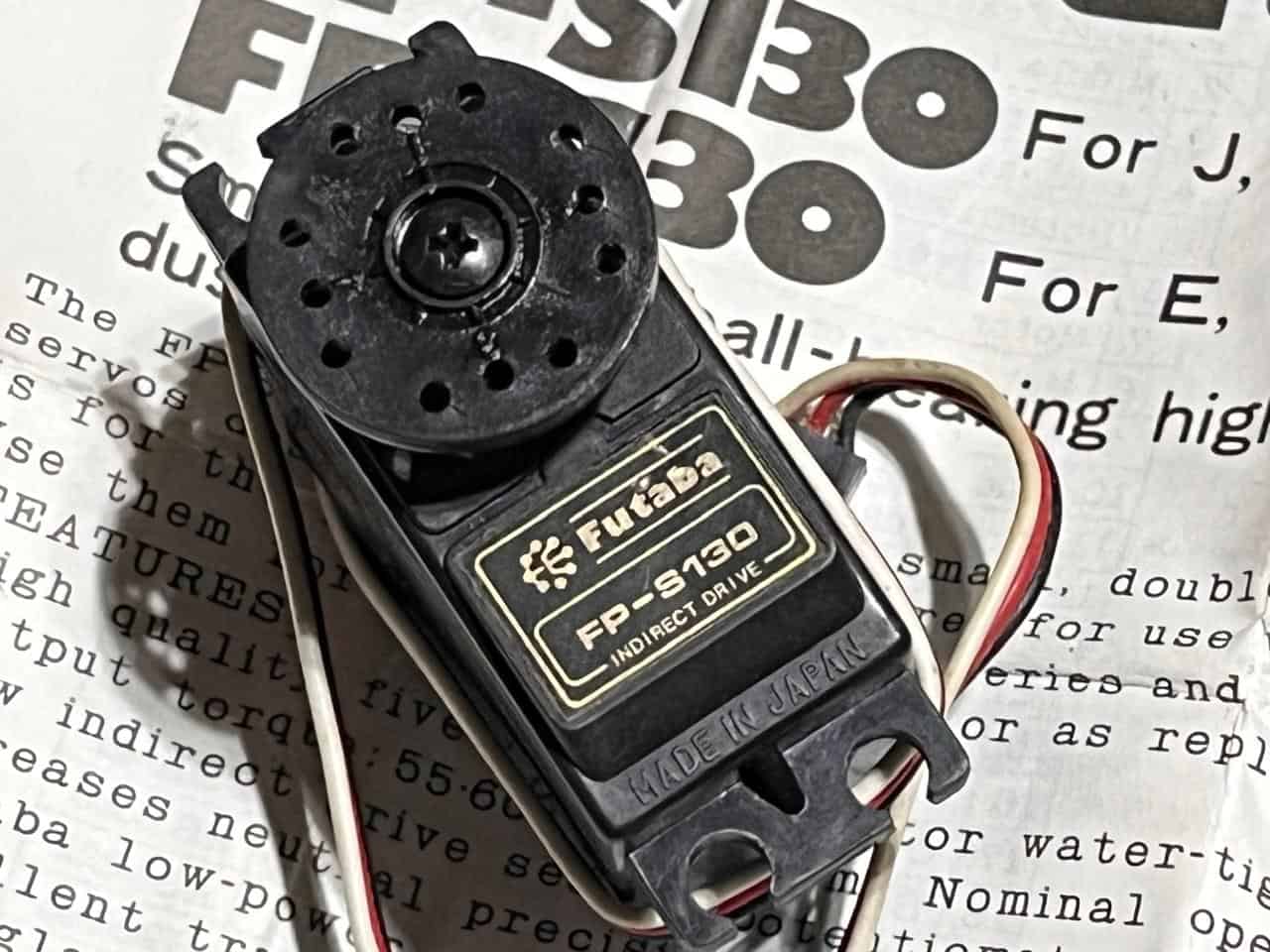

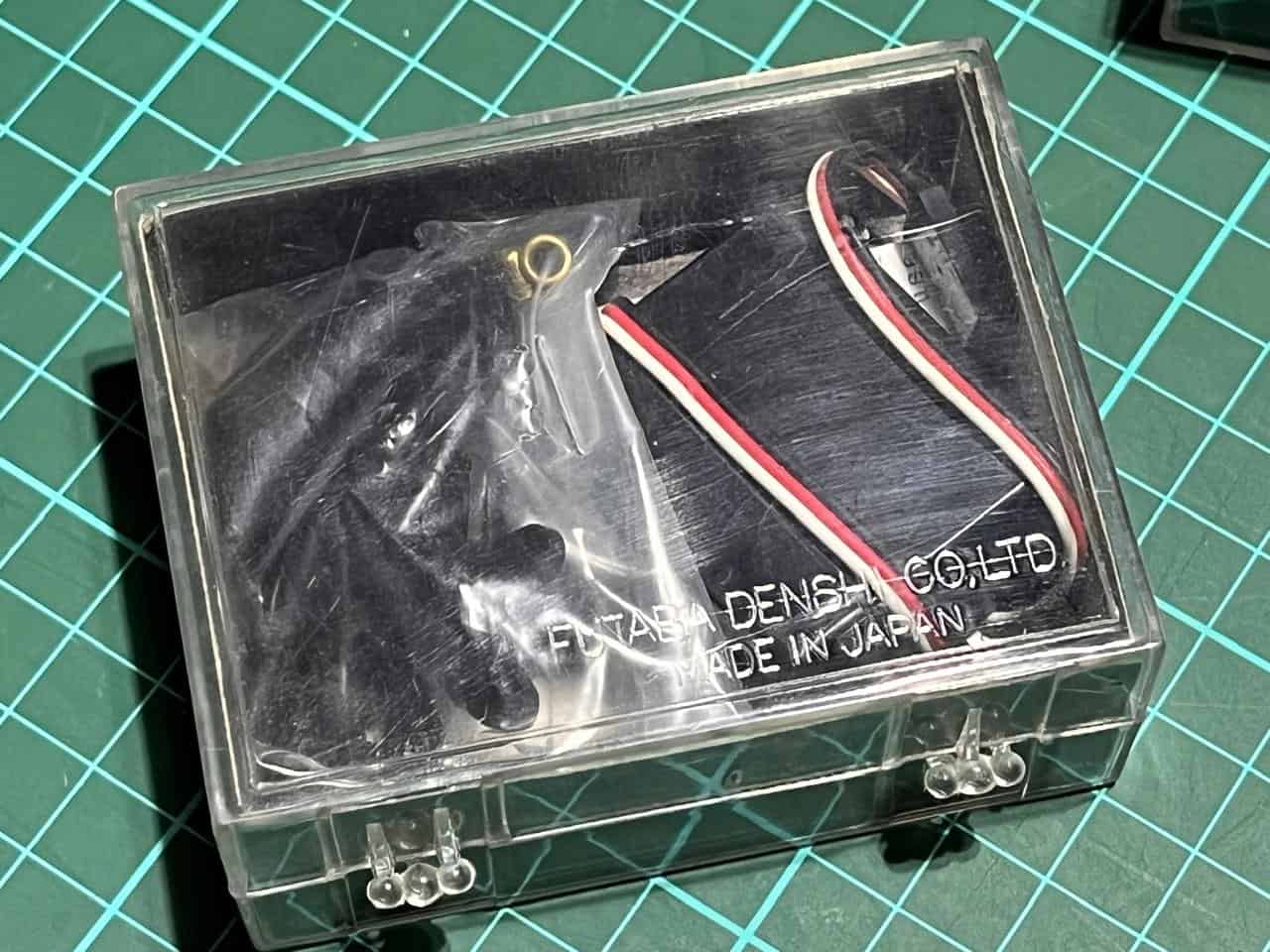

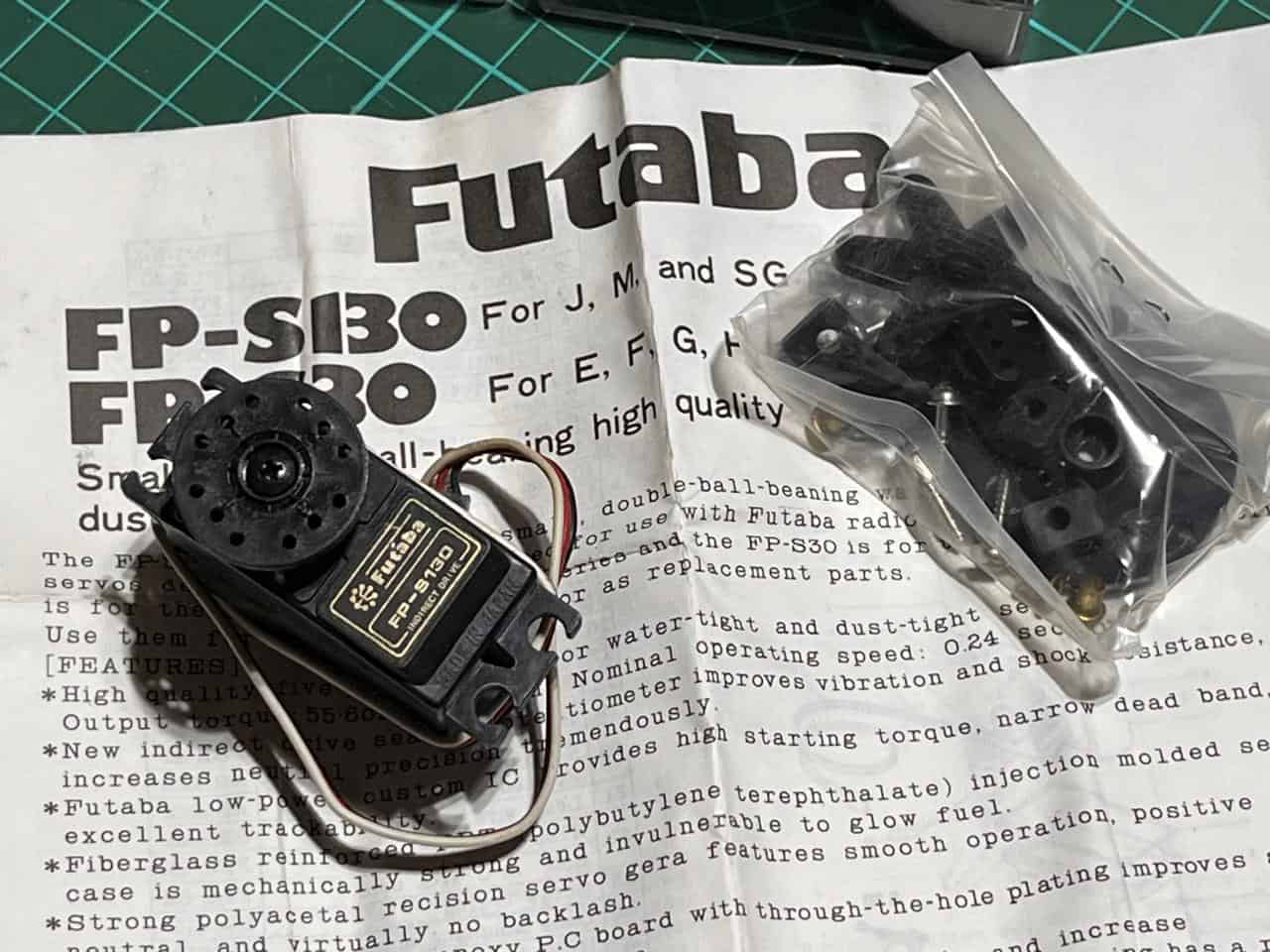

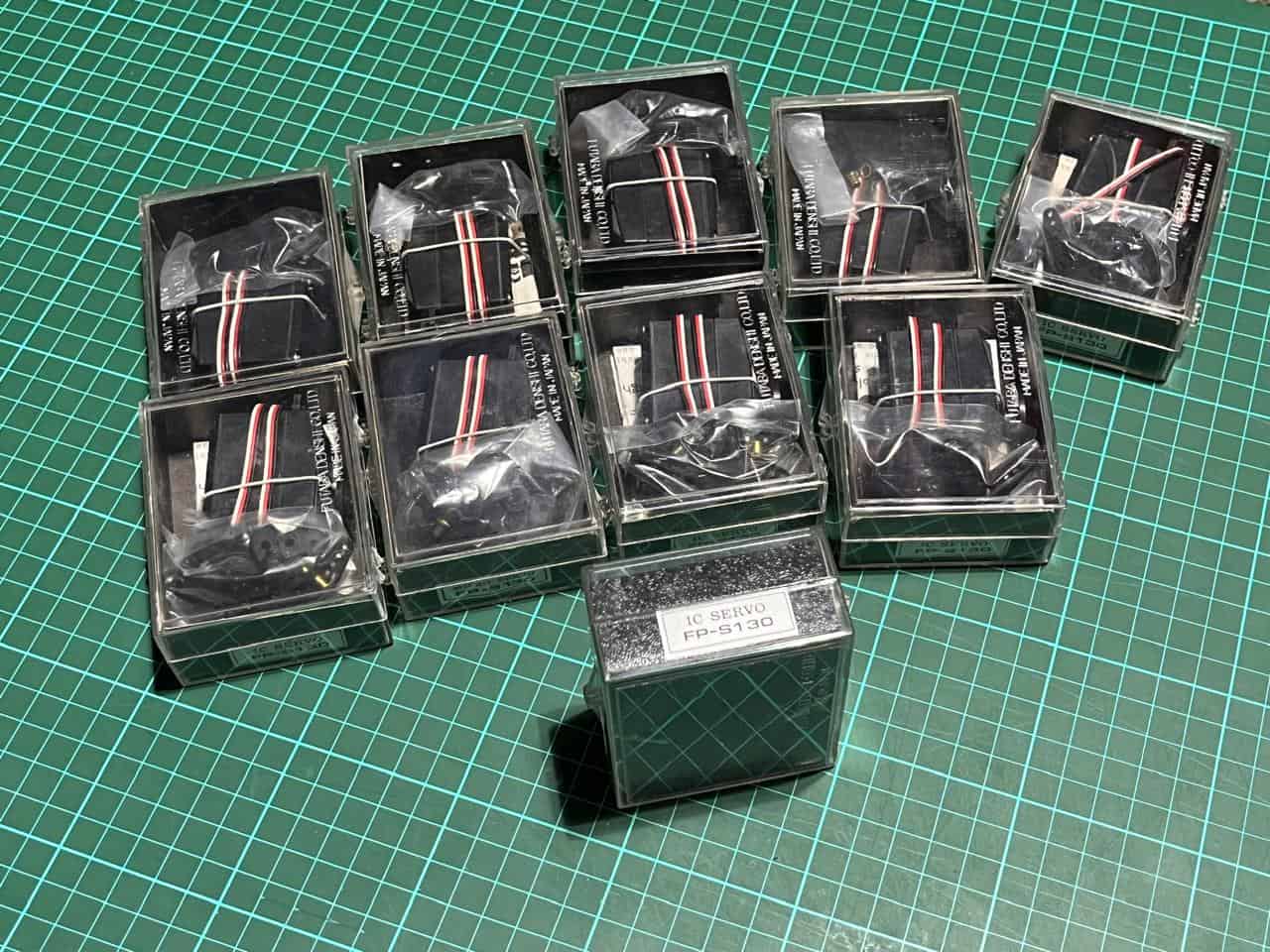

Futaba FP-S130 Servo (CODE 714) NEW x10 In Stock

This is a vintage standard analog servo that was popular in the mid-to-late 1980s and 1990s. Known for introducing an “indirect drive” potentiometer to resist vibration and shock, it is long discontinued but frequently surfaces as a “New Old Stock” (NOS) item or salvaged pulled from vintage RC gliders and sport airplanes.
Strict voltage limits:
Do not plug this servo into modern 6.0V, 6.6V (LiFe), or 7.4V/8.4V (LiPo) power sources; the internal legacy analog amplifier cannot handle the over-voltage and will burn out.
Should be used with a voltage regulator.

Technical Specifications

• Size Category: Standard
• Dimensions: 38.1 mm × 19.1 mm × 33.3 mm (1.50″ × 0.75″ × 1.31″)
• Weight: 39.7 g (1.40 oz)
• Motor Type: 3-Pole Brushed Motor
• Gears: Precision Plastic / Polyacetal resin
• Bearings: Single Ball Bearing
• Modulation / Signal: Analog (+ pulse width 1,520μs neutral)
• Connector Type: Vintage Futaba “J” plug (un-tabbed or tabbed depending on production year)
• Operating Voltage: Strictly 4.8V Nominal
• Speed & Torque (at 4.8V):
• Torque: 4.0 kg-cm (55.60 oz-in)
• Speed: 0.24 sec/60°
