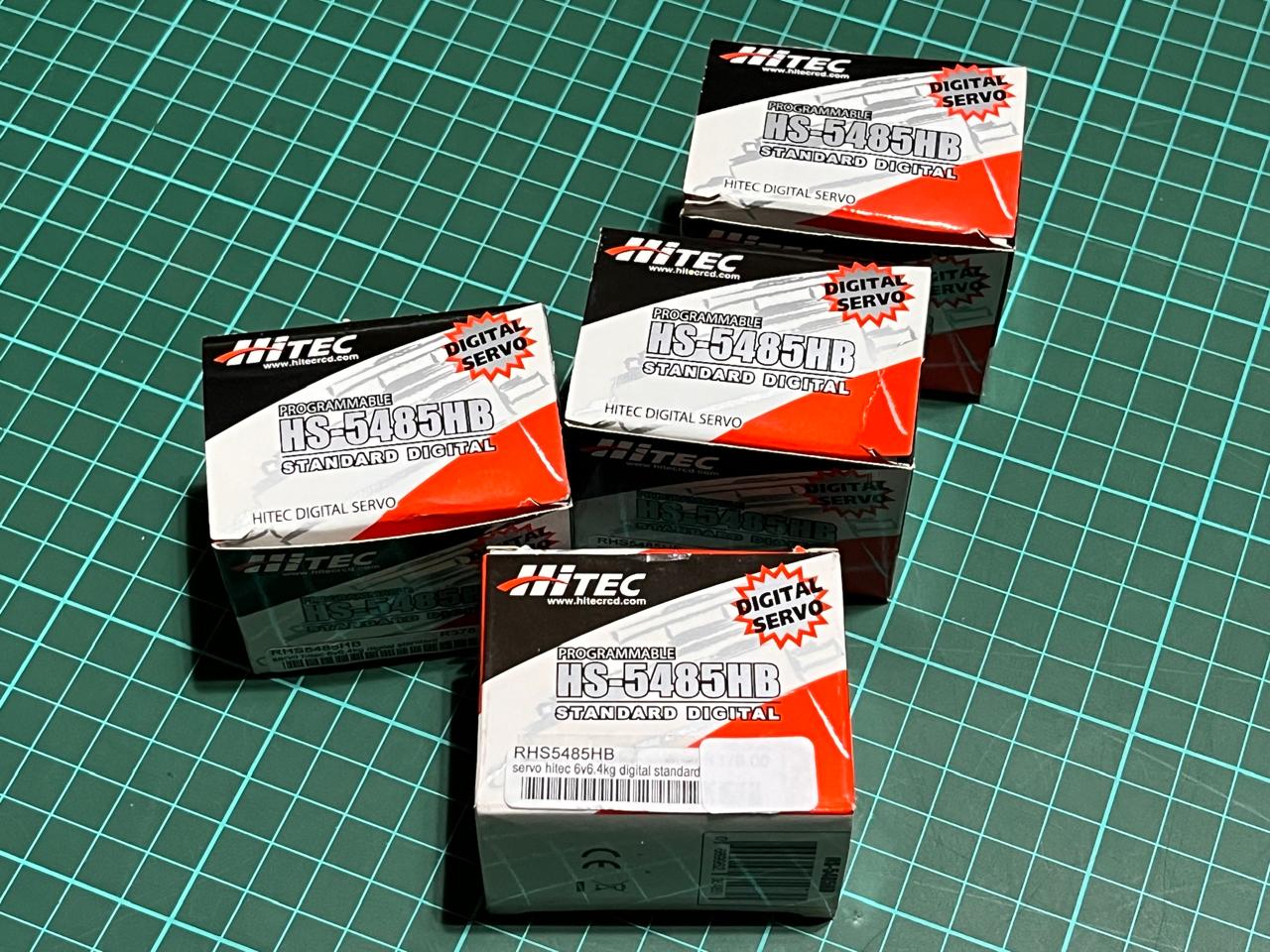

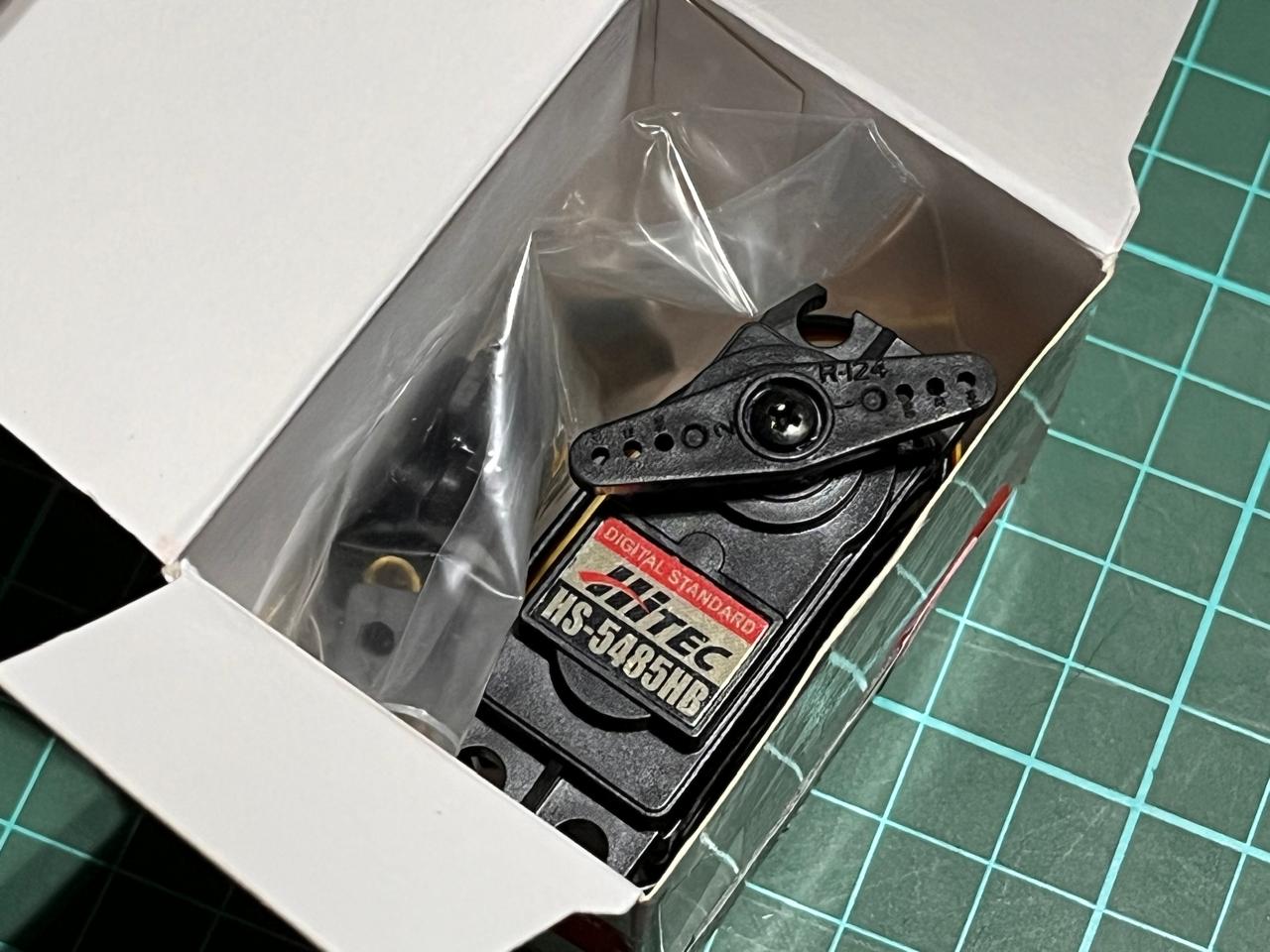

Hitec HS-5485HB Servo. (CODE 709) NEW x4 In Stock

This is a standard-sized, entry-level programmable digital sport servo. It is highly regarded as one of Hitec’s most economical digital servos, making it an excellent choice for sport aircraft up to .60 size, scale gliders, and helicopters.

Technical Specifications

Parameter Specification
Signal Type Digital (Programmable G1 Circuit)
Motor Type 3-Pole Ferrite
Gear Material Karbonite™ Resin (4x stronger than standard nylon)
Output Spline 24-Tooth (Hitec Standard / Ø6mm)
Bearing Type Top Ball Bearing
Operating Voltage 4.8V to 6.0V DC Max
Torque (at 4.8V) 5.2 kg-cm / 72.0 oz-in
Torque (at 6.0V) 6.4 kg-cm / 89.0 oz-in
Speed (at 4.8V) 0.20 sec / 60°
Speed (at 6.0V) 0.17 sec / 60°
Dimensions 39.8 mm × 19.8 mm × 38.0 mm
Weight 45.0 g / 1.59 oz
