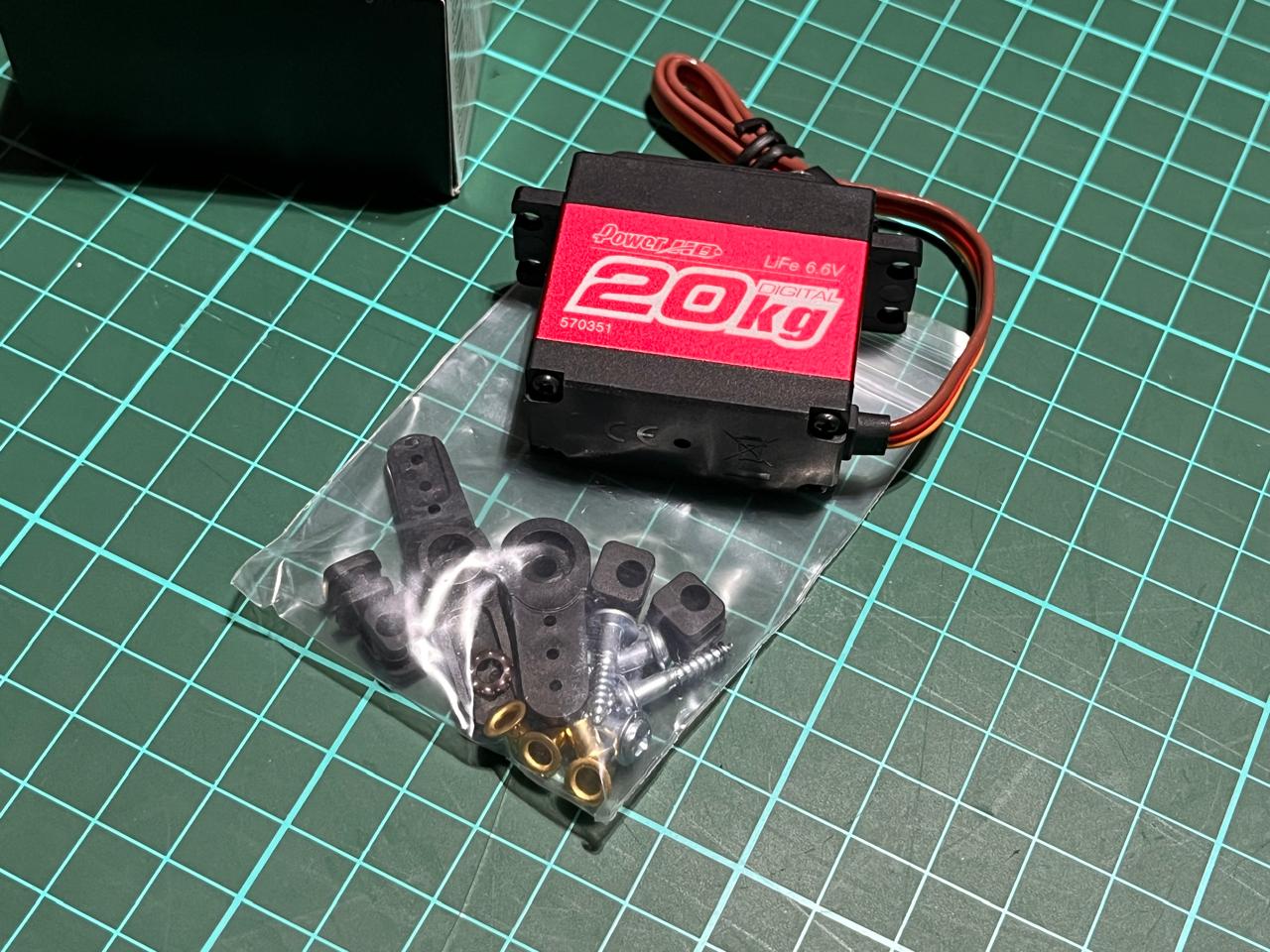

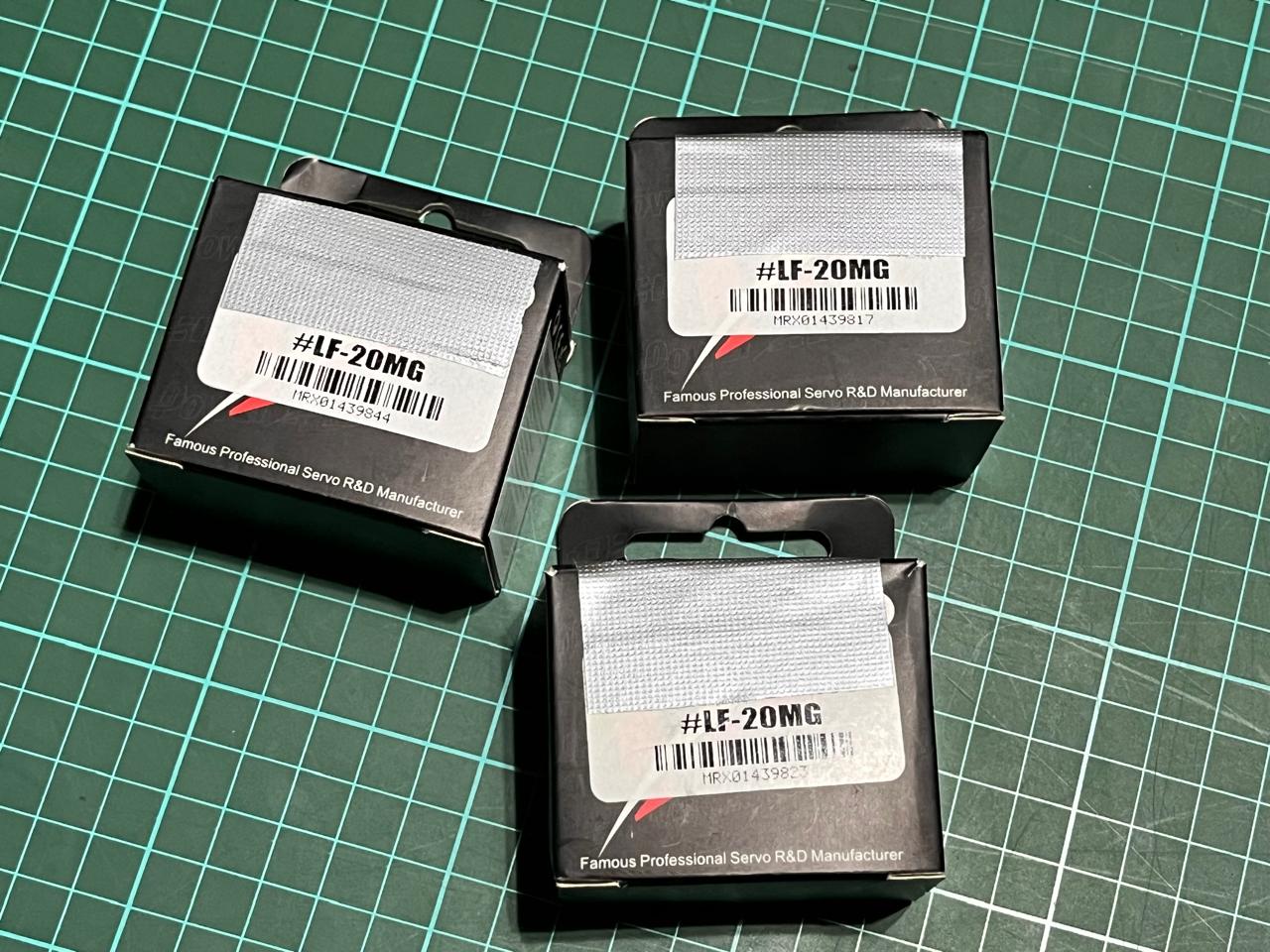

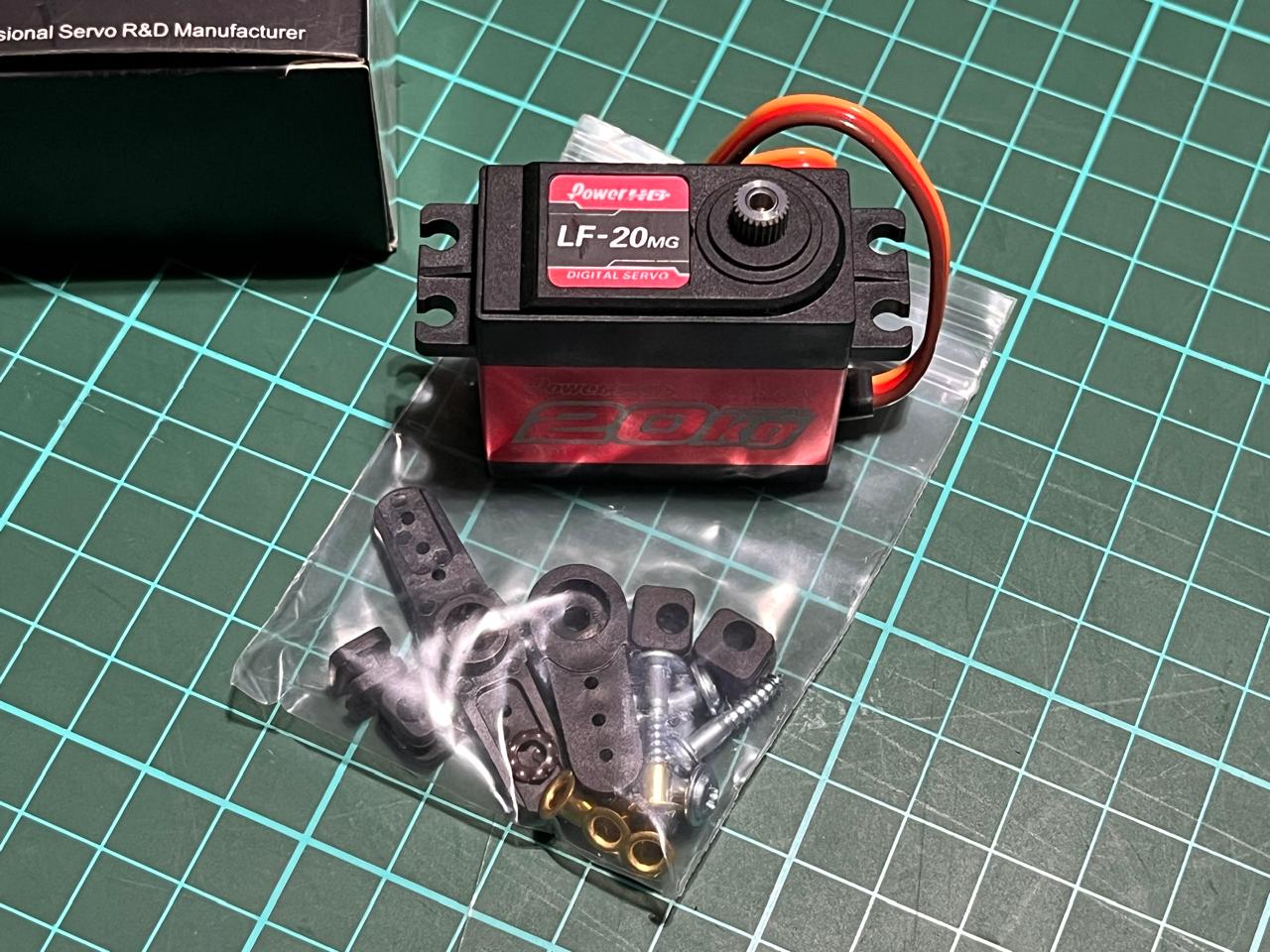

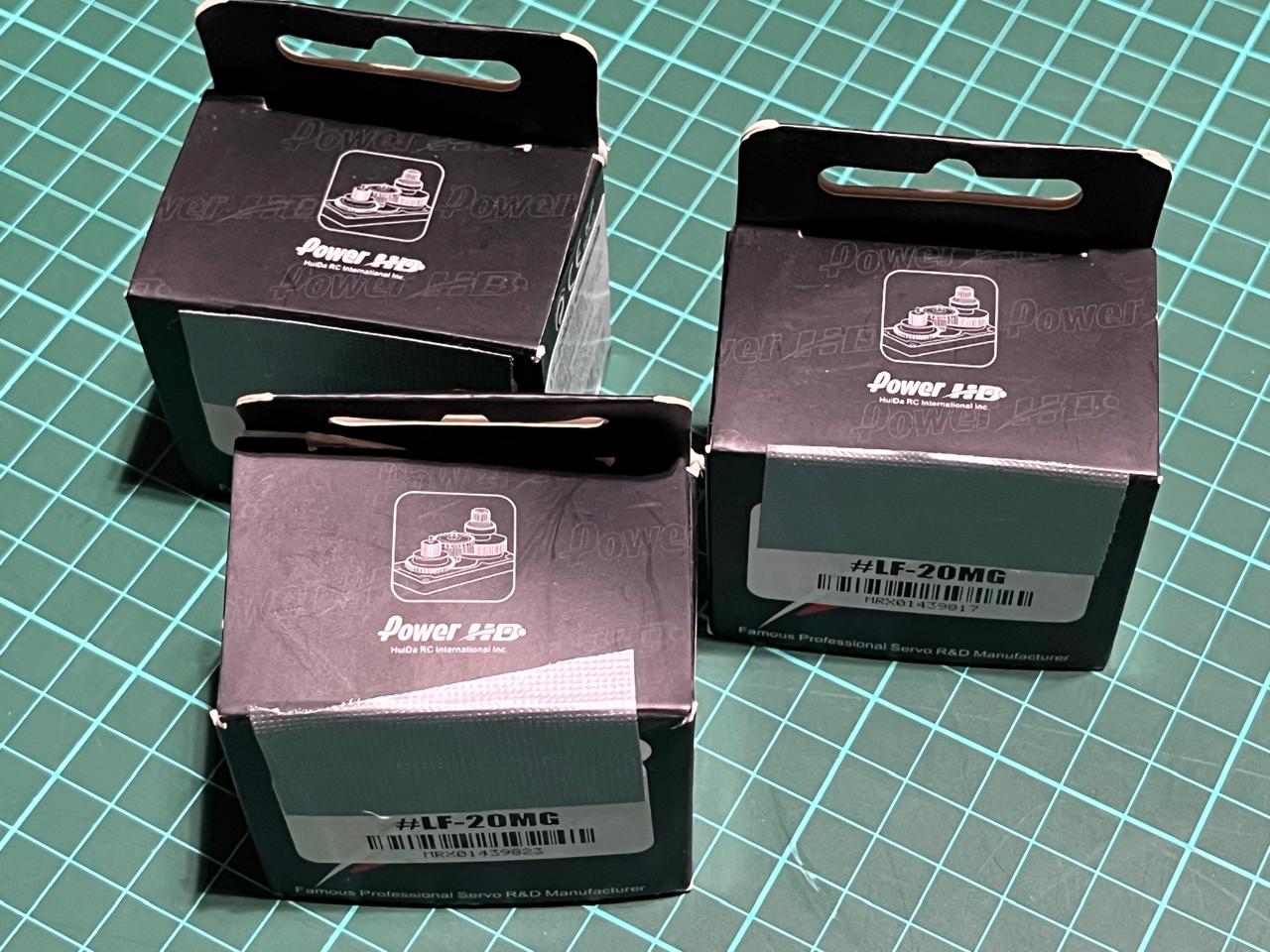

Power HD LF-20MG Servo (CODE 705) x3 In Stock) NEW

This is a highly popular, budget-friendly standard-sized digital high-torque servo. It features a distinctive layout with a machined aluminum middle casing to dissipate heat from the DC motor, combined with plastic top and bottom caps. It is widely used in larger fixed-wing model aircraft.

Technical Specifications.

Parameter Specification
Signal Type Digital
Motor Type Brushed DC Motor
Gear Material Copper (Brass) & Aluminum Metal Gears
Spline Count 25-Tooth (Standard Futaba type)
Bearing Type Dual Ball Bearings
Operating Voltage 4.8V to 6.6V DC Max
Torque (at 4.8V) 16.5 kg-cm / 229.1 oz-in
Torque (at 6.6V) 20.0 kg-cm / 277.7 oz-in
Speed (at 4.8V) 0.18 sec / 60°
Speed (at 6.6V) 0.16 sec / 60°
Working Frequency 1520 µs / 333 Hz
Dimensions 40.7 mm × 20.5 mm × 39.5 mm (Standard Size)
Weight 60.0 g / 2.12 oz
