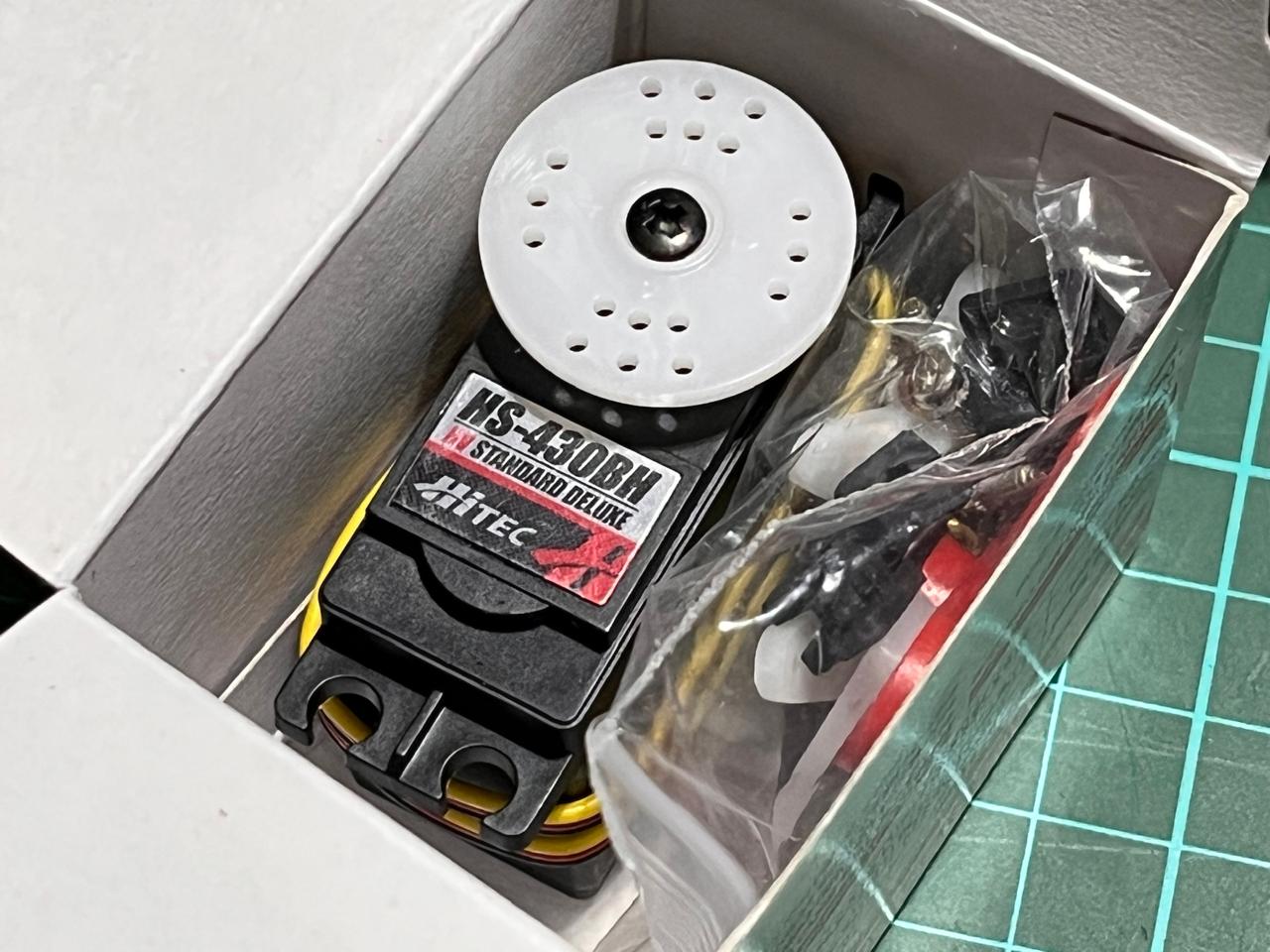

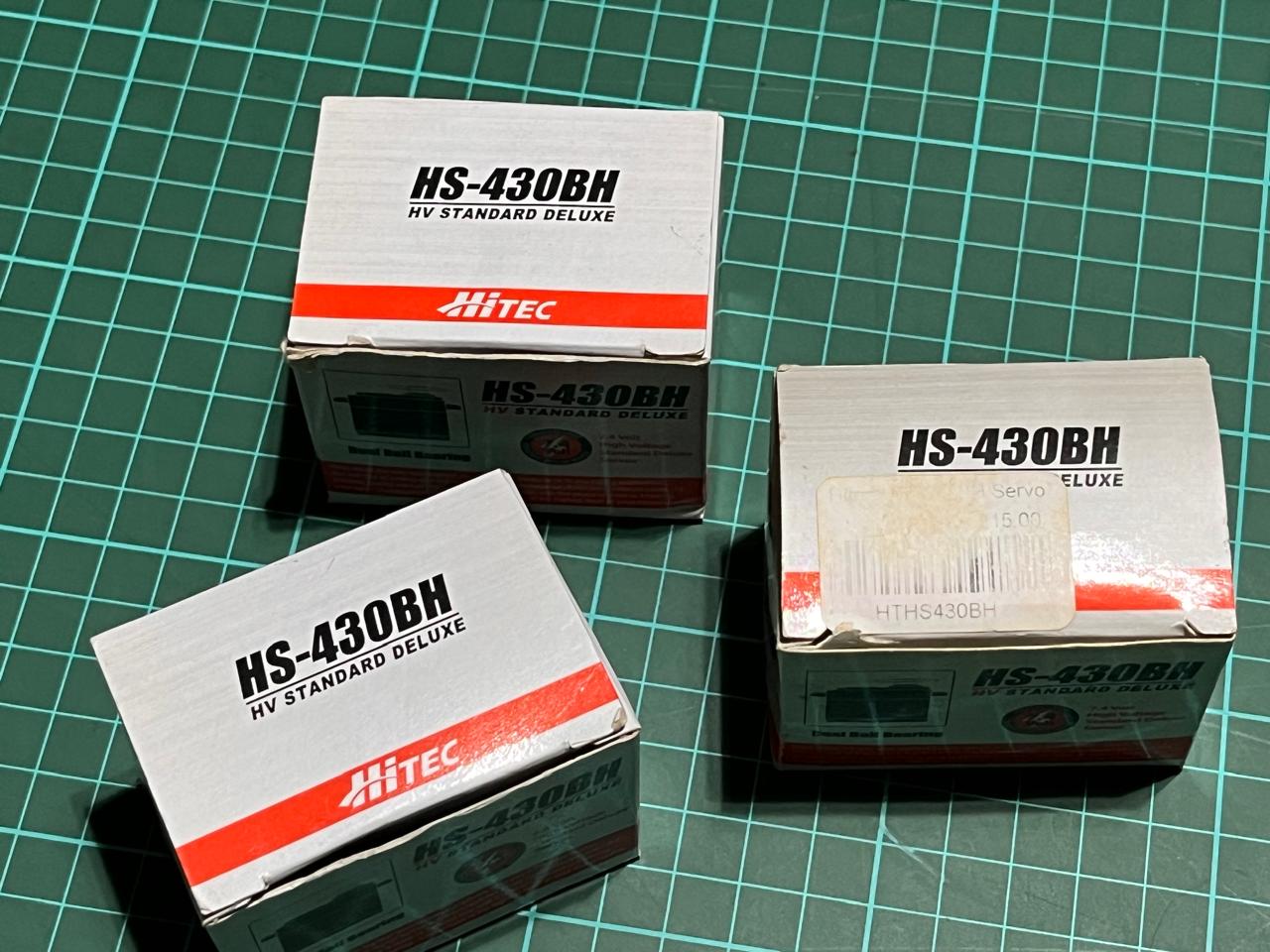

Hitec HS-430BH Deluxe Servo. (CODE 708) NEW x3 In Stock.

This is a standard-sized analog sport servo designed with unique High-Voltage (HV) capability.

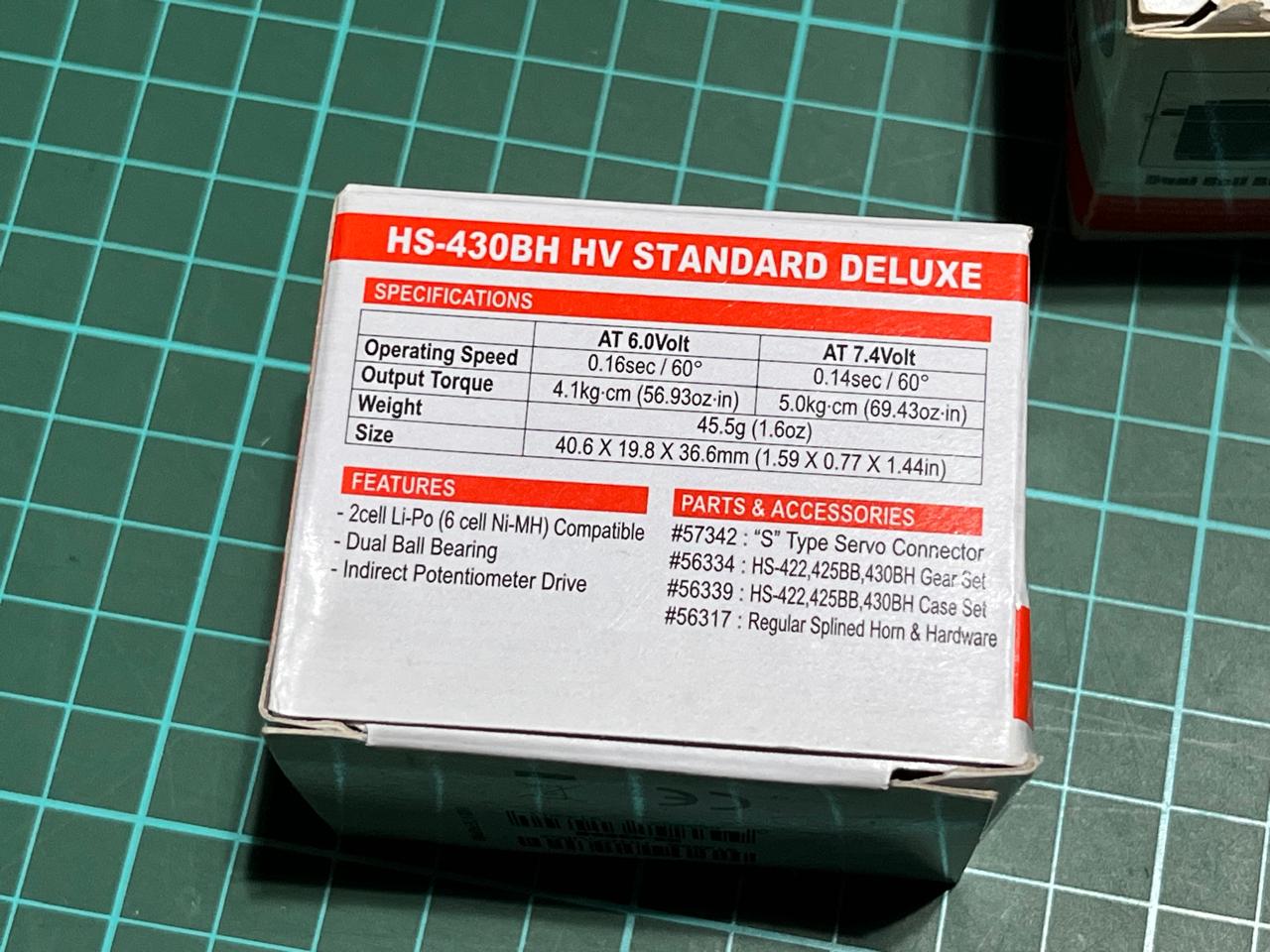

Technical Specifications

Parameter Specification
Signal Type Analog (PWM / 50Hz)
Motor Type 3-Pole Ferrite / Cored Metal Brush
Gear Material Heavy-Duty Resin / Nylon (4 Gears)
Output Spline 24-Tooth (Hitec Standard / C1 Spline)
Bearing Type Dual Ball Bearings
Operating Voltage 6.0V to 7.4V DC Nominal (Direct 2S LiPo Capable)
Torque (at 6.0V) 4.1 kg-cm / 57.0 oz-in
Torque (at 7.4V) 5.0 kg-cm / 69.0 oz-in
Speed (at 6.0V) 0.16 sec / 60°
Speed (at 7.4V) 0.14 sec / 60°
Dimensions 40.6 mm × 19.8 mm × 36.6 mm
Weight 45.5 g / 1.60 oz
